Description

Specifications of BNC Female to SMA Male RF Coaxial Connector1. BNC Female connector

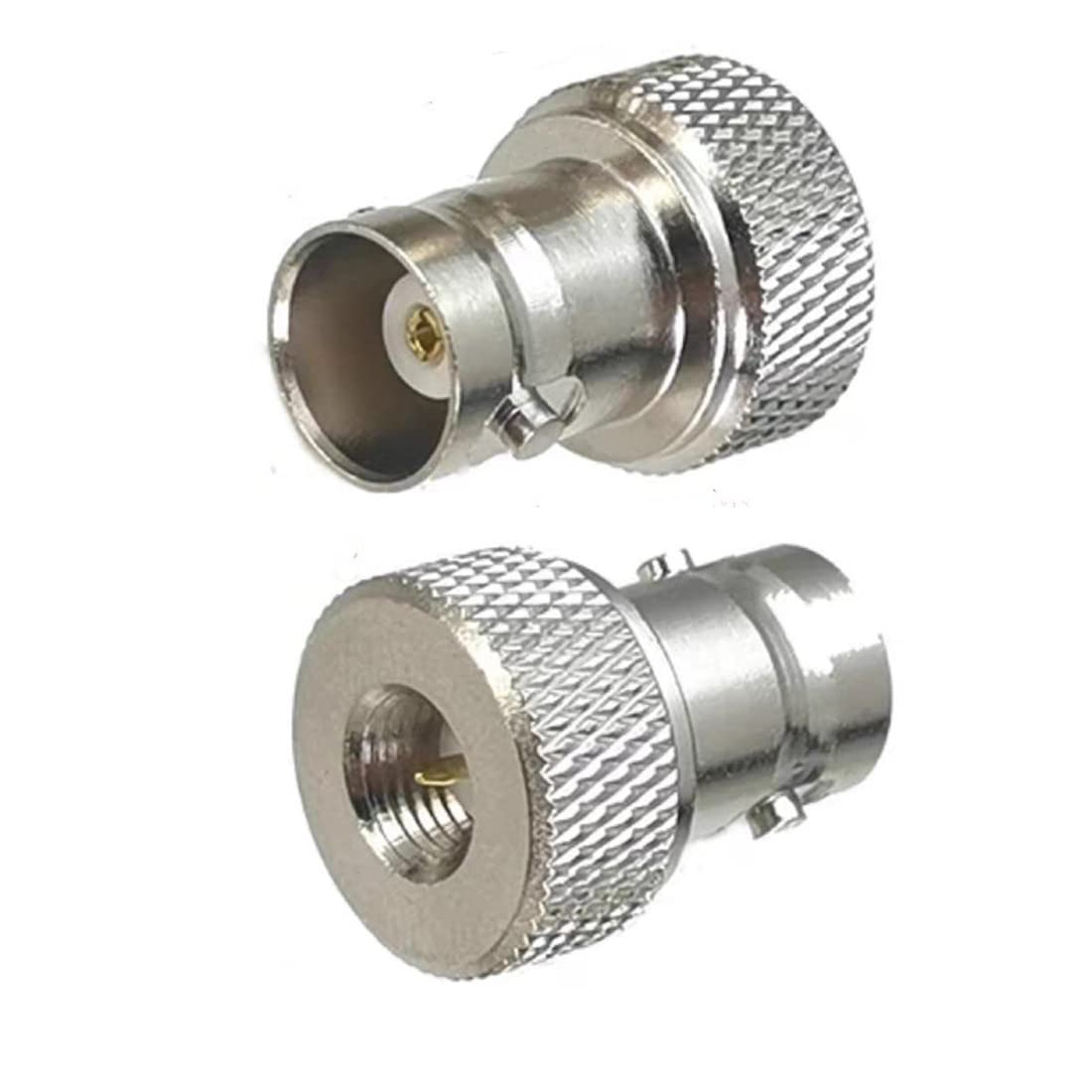

For ONE connector. Photo shows two for end to end clarification.
2. SMA Male connector
3. Materials: brass & nickel plated
4. Impedance: 50 ohm, Low-loss
5. Frequency Range: DC – 11GHz
6. Temperature Range: -55~+155°C (PE Cable -40~+85°C)
7. Working Voltage: 1000V r.m.s at sea level
9. Insulation resistance: ≥5000MΩ
10. Center Conductor retention force: ≥0.56N
11. Insertion Loss: ≤0.10dB
